flutterアプリからGoogleSpreadsheetにデータ保存(1.Googleログイン編)

こんにちは。

記録系のアプリで入力したデータは自分で自由に分析出来るように元データが欲しい、と思う人は少なくないと思います。どのような仕組みになっているのが楽かなぁと思った時に、自分のGoogleDriveにSpreadsheetでデータが保存出来たら、見やすいし加工もしやすいです。 という事で、ざっくり以下構成で解説します。今日はGoogleにログインするです。

  1. Googleにログインする
  2. GoogleDriveにSpreadsheetを作成してデータを入れる

前提

  • Android Studioにてアプリを作成する前提で解説しております。
  • アプリに自前でGoogleログイン機能を追加するのはとても大変なので、Firebaseの認証機能などのプラグインを使っていきます。そのため、Firebaseの設定も必要になります。

プラグインインストール

必要なプラグインは次のとおりです。

プラグイン説明
firebase_coreFirebaseCoreAPIを使用するFlutterプラグイン (Firebase初期化の使用)
firebase_authFirebaseAuthenticationAPIを使用するためのプラグイン (Firebase認証機能の使用)
google_sign_inGoogleサインインを使用する

pubspec.yamlに以下を追加します。

1
2
3
4
5
dependencies:
 ・・・
  firebase_core: ^1.8.0
  firebase_auth: ^3.1.4
  google_sign_in: ^5.1.1

そして「flutter pub get」でインストールします。

設定(Android編)

基本的には、こちらに書いてある事をします。

Firebase Console(https://console.developers.google.com/)からプロジェクトを新規作成します。

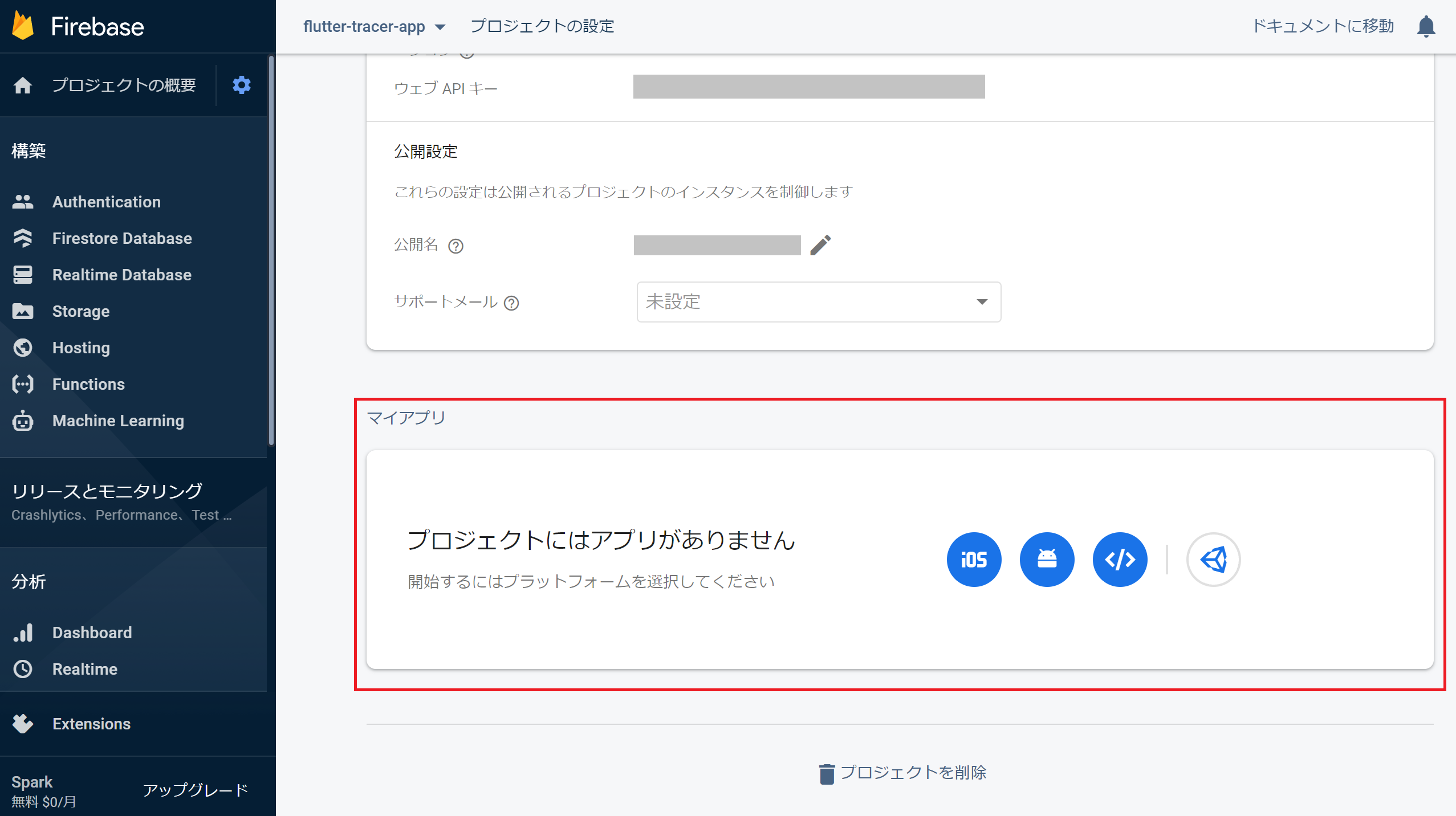

プロジェクトを作成したら、設定をしていきます。

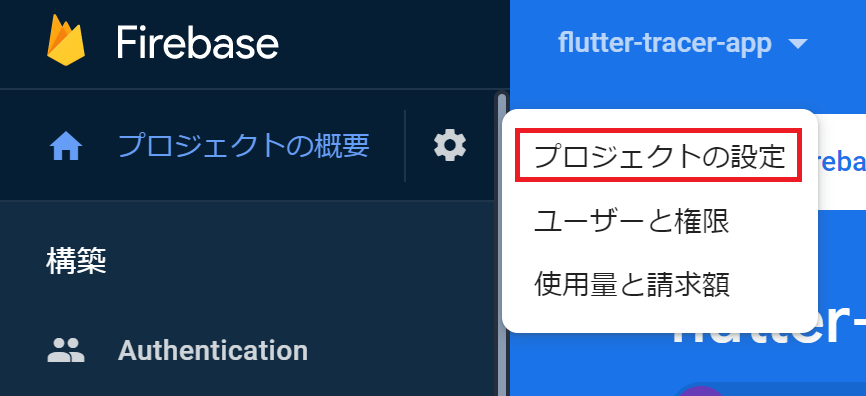

\[プロジェクトの設定\]

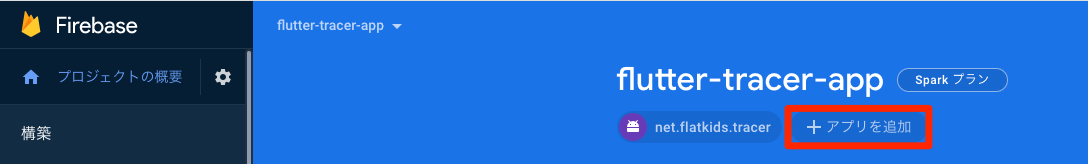

からアプリを追加します。

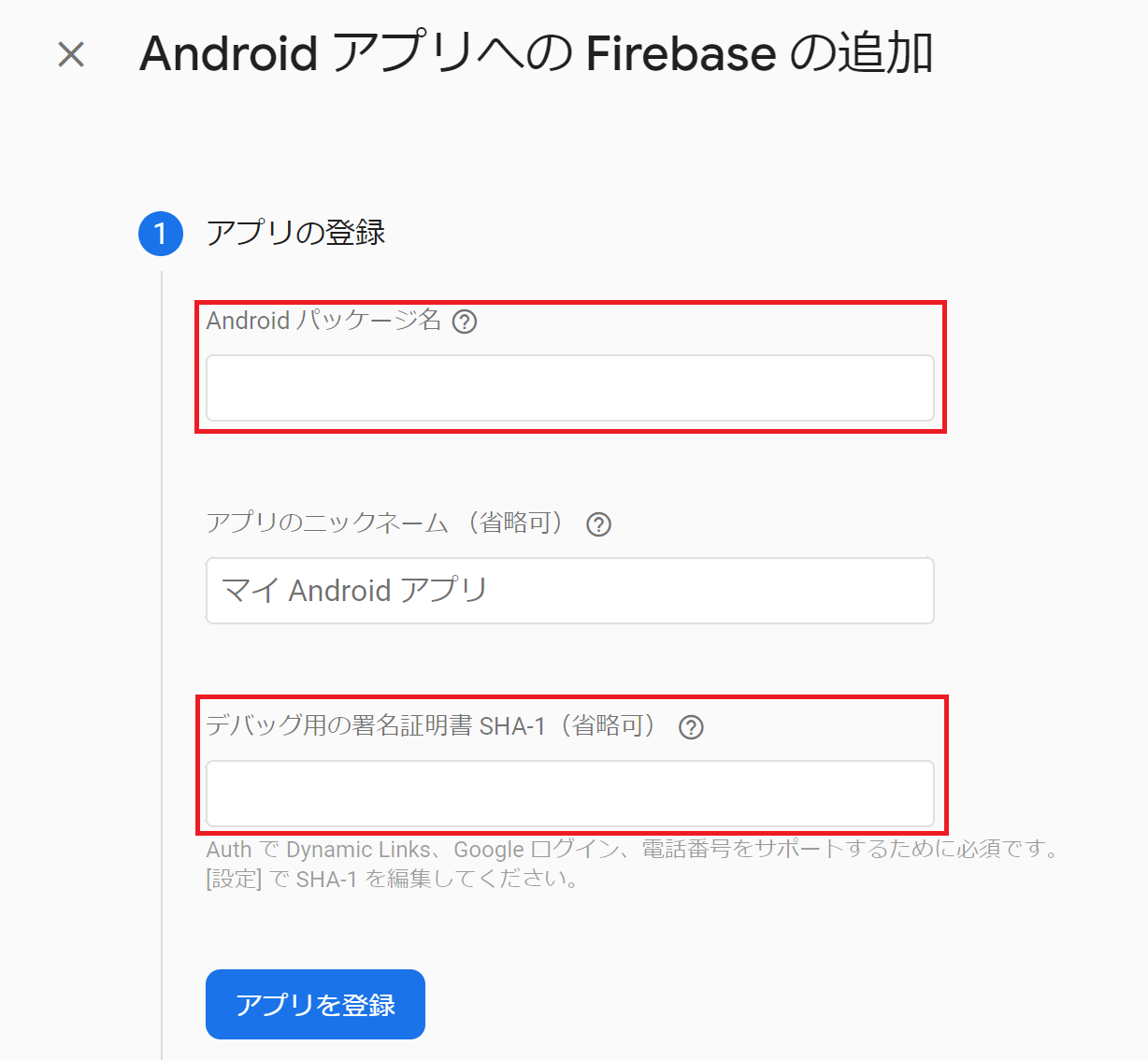

以下にて、Androidパッケージ名とデバッグ用の署名証明書SHA1を入力します。

SHA1はこちらのサイトに取得方法が記載されていますが、WindowsでAndroidStudioをお使いの方は以下のようにします。

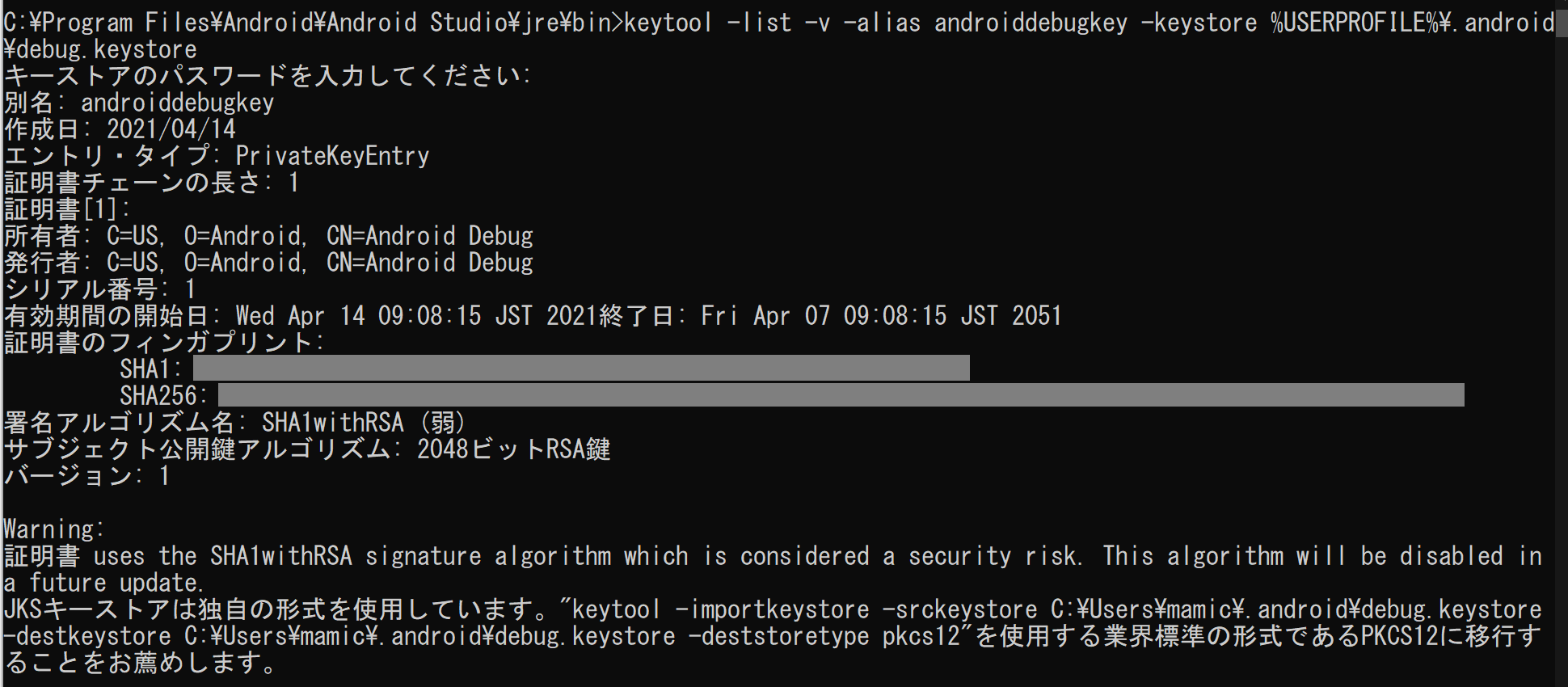

コマンドプロンプトを起動して、以下を入力します。

1
2
>cd C:\Program Files\Android\Android Studio\jre\bin
>keytool -list -v -alias androiddebugkey -keystore %USERPROFILE%\.android\debug.keystore

「キーストアのパスワードを入力してください:」と言われるので「android」と入力します。 SHA1の部分をコピーして先ほどのデバッグ用の署名証明書SHA1に入力します。

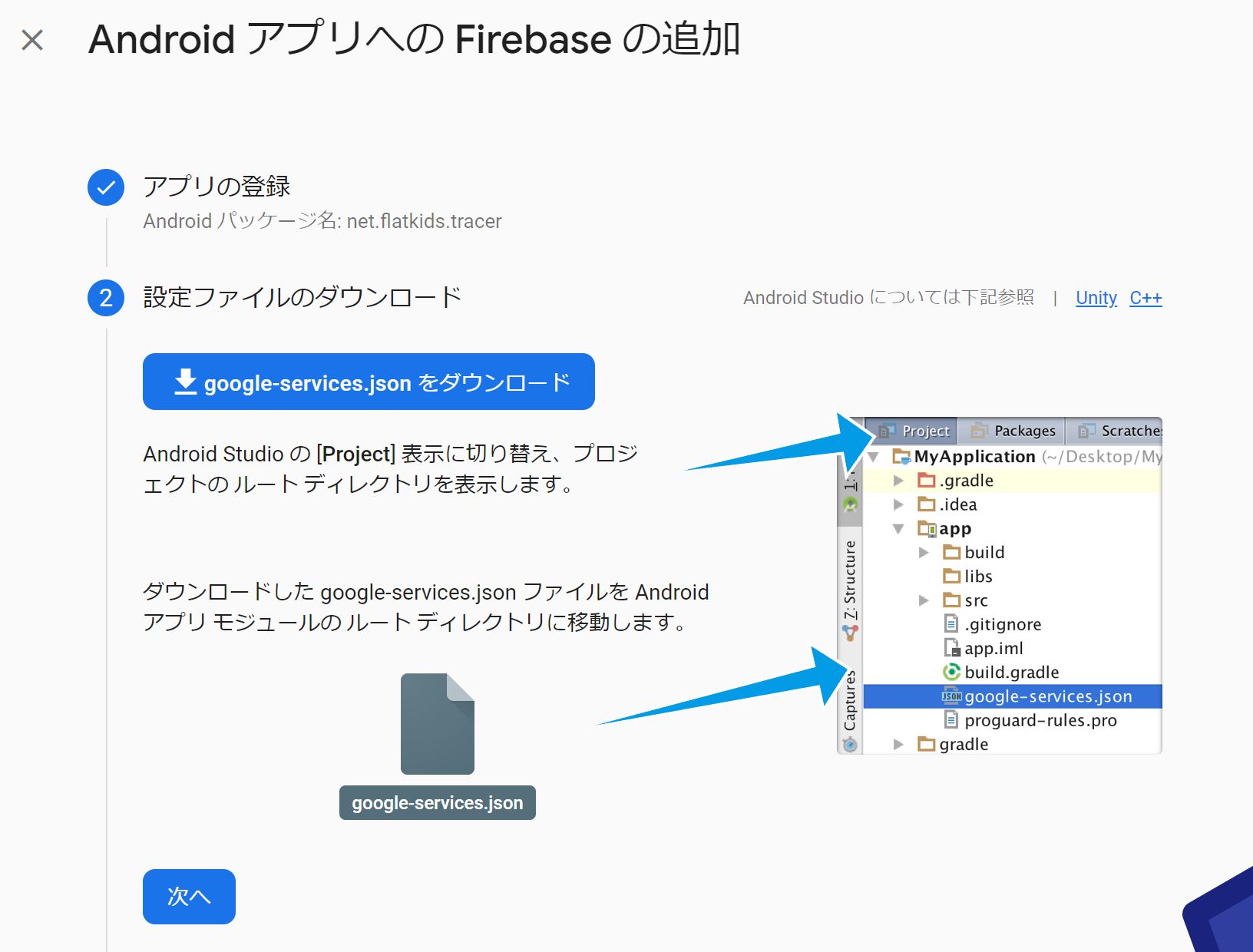

google_service.jsonをダウンロードして所定の場所に置け、とあります。

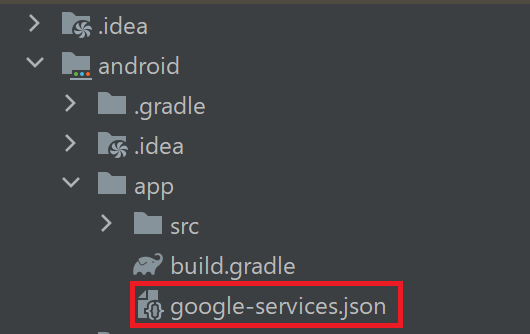

こちらに置きます。

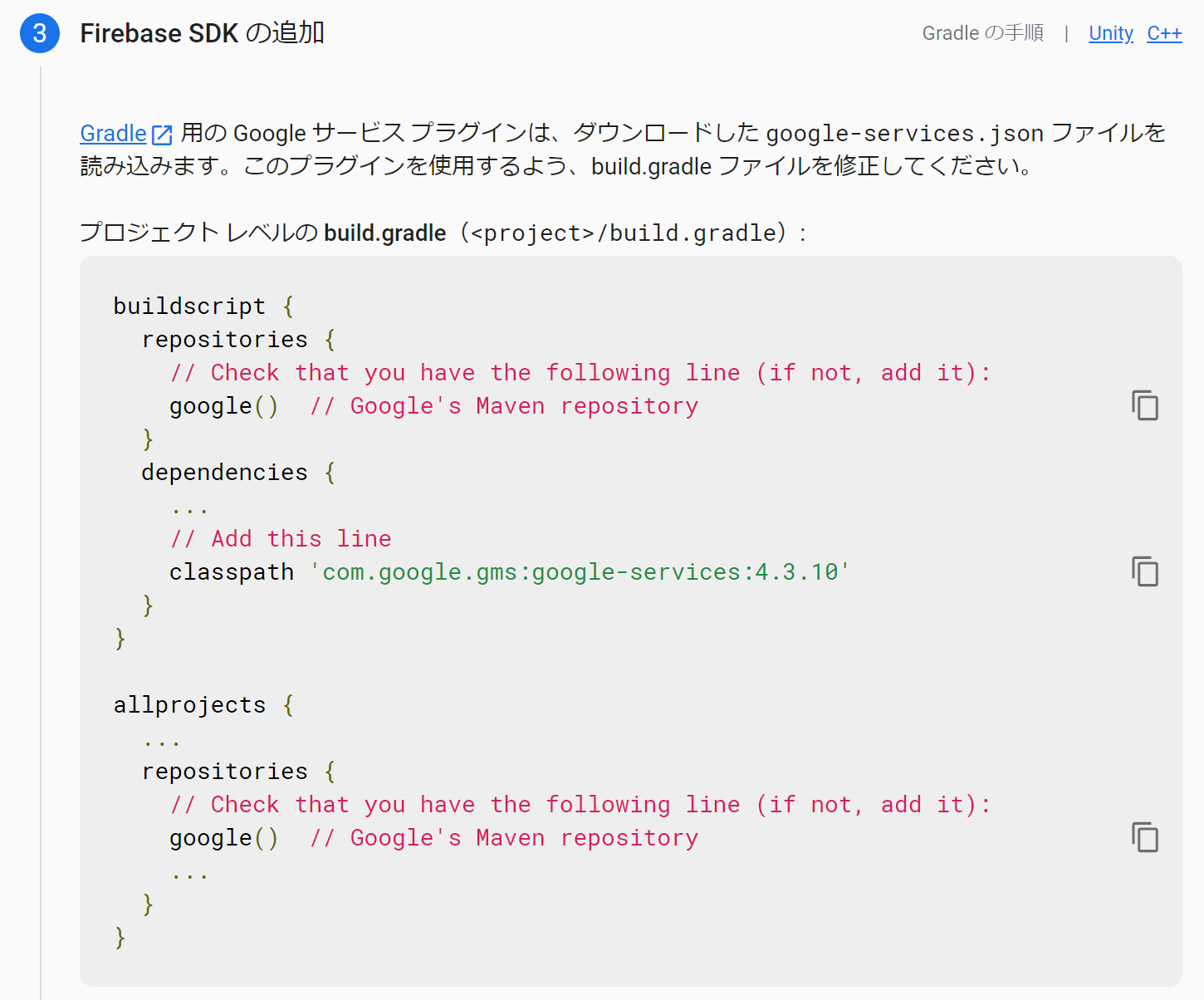

次に、google_service.jsonを読み込むためにソースコードを追記する必要があるそうです。

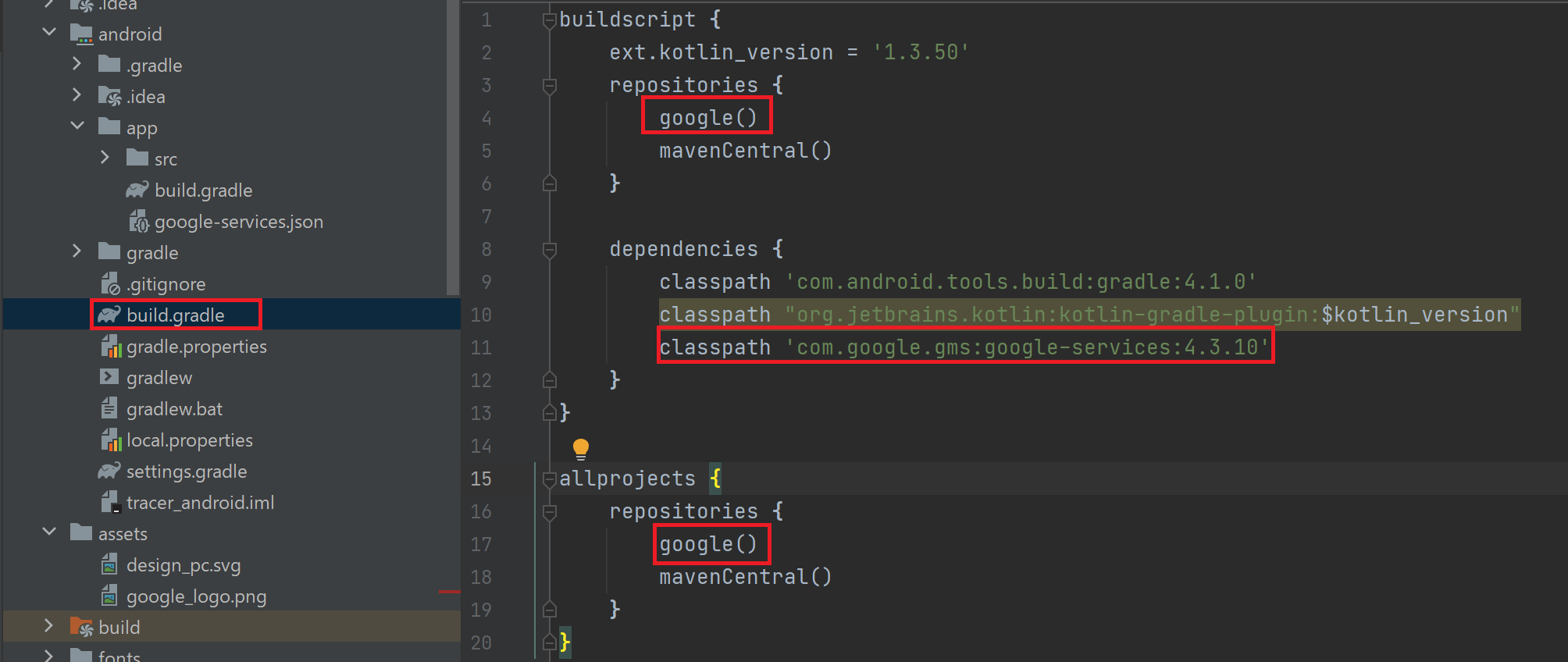

赤枠部分を追加(最初からあるものもある)します。

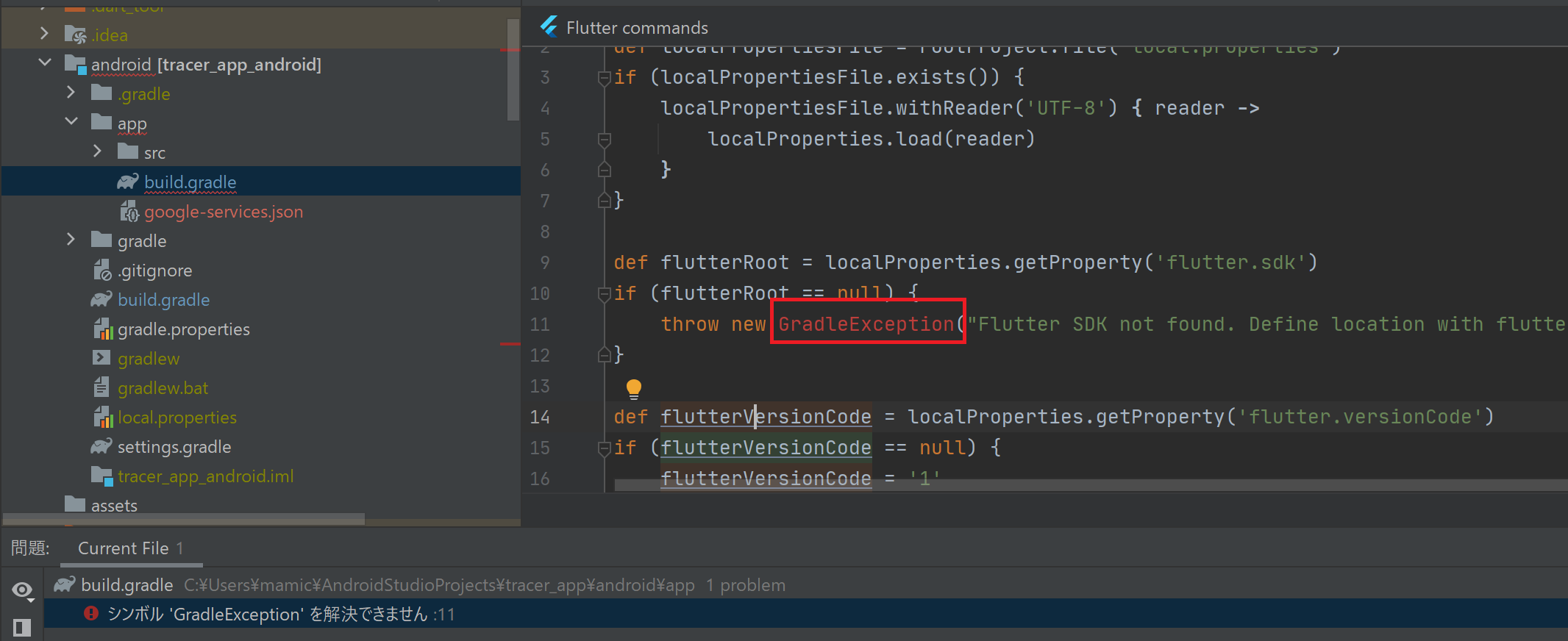

補足:現時点で以下がエラーになるので、「GrandleException」を「FileNotFoundException」に変更します。

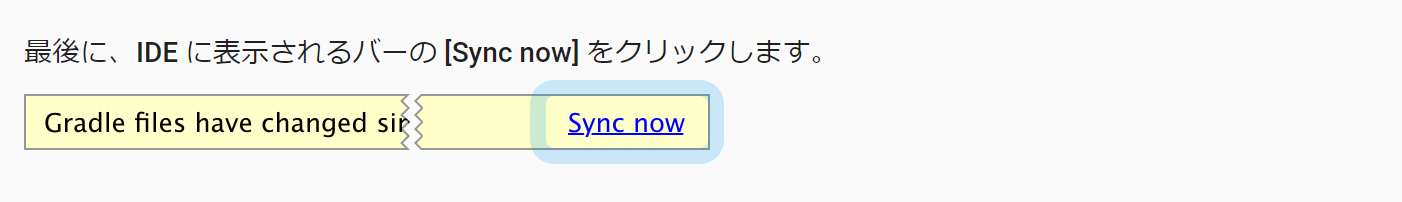

そして、同期してね、という事なので、

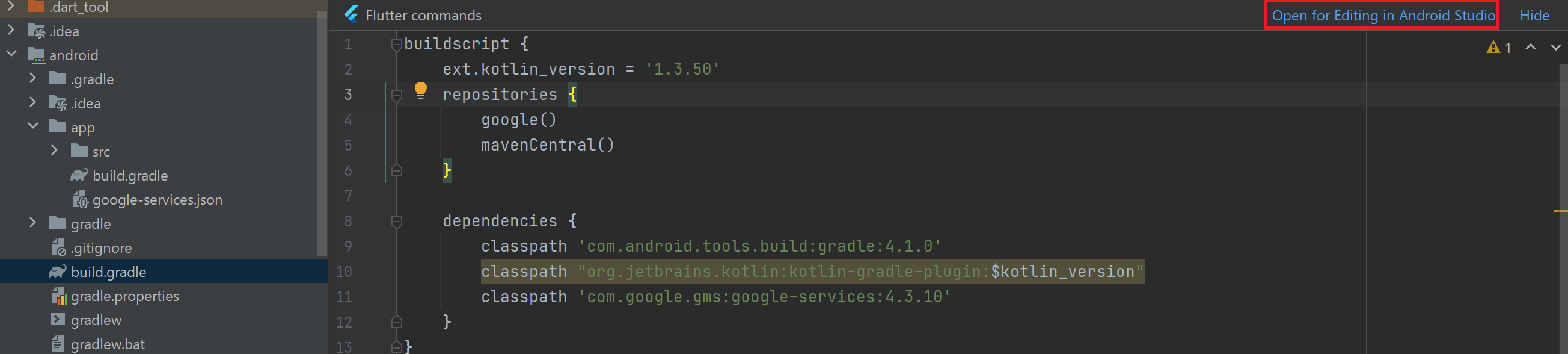

Android Studioでは「Open for Editing in Android Studio」をクリックします。(これで同期)

設定(ios編)

※Macにて実施している前提で進めます。 Androidとiosの両方を設定する方はAndroidで作成したプロジェクトにアプリを追加します。もしFirebaseプロジェクトを作成されていない方はFirebase Console(https://console.developers.google.com/)からプロジェクトを新規作成します。

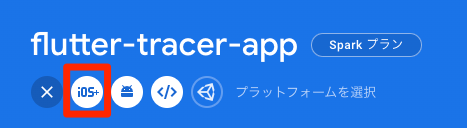

以下から追加します。

iosアイコンを選びます。

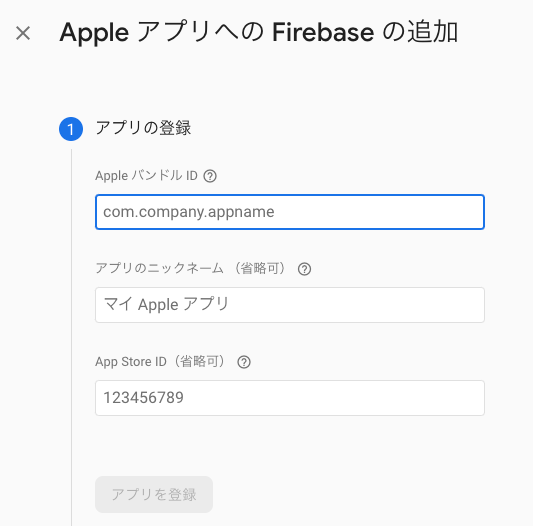

以下のような表示になります。

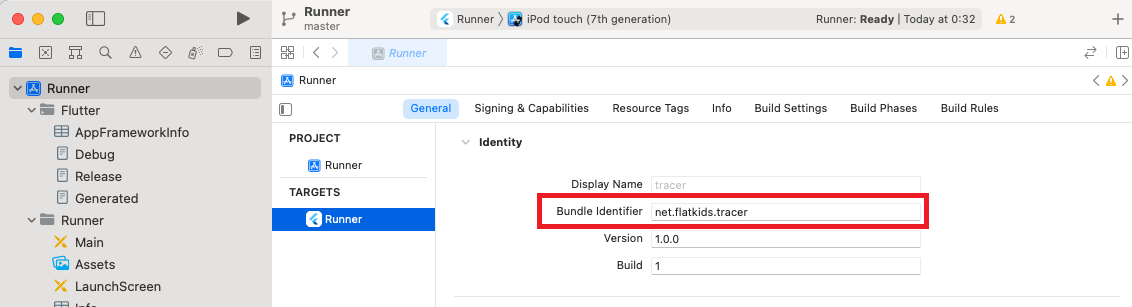

AppleハンドルIDはXcodeで調べます。

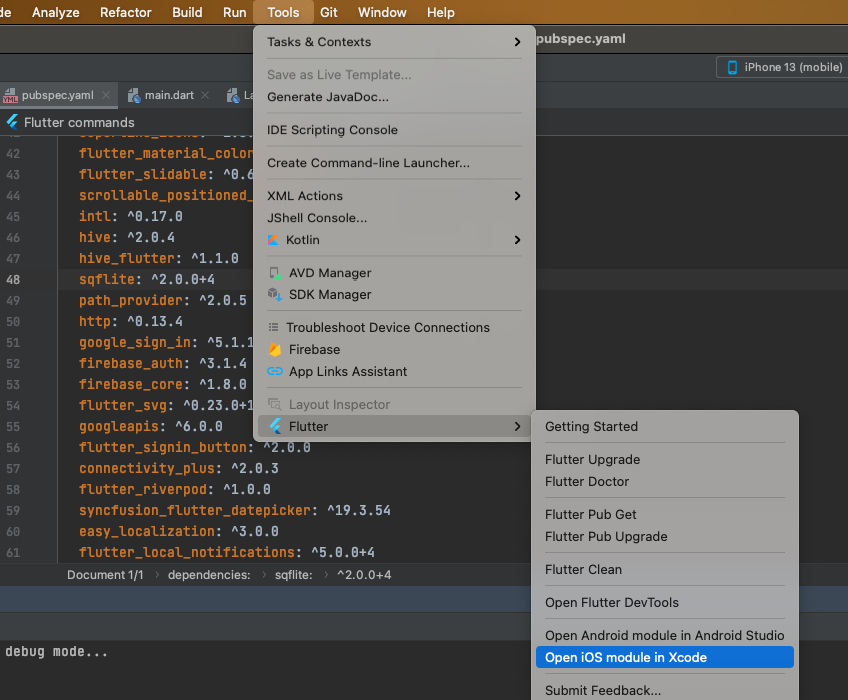

\[Tools\]

-

\[Flutter\]

-

\[Open ios module in Xcode\]

もしくはターミナルにてiosフォルダに移動し、「open Runner.xcworkspace」と入力するとXcodeで以下画面が立ち上がります。 Bundle IdentifierをAppleハンドルIDに入れて次に進みます。(Xcodeは後で使うのでそのままにしてください。)

GoogleService-info.plistをダウンロードします。

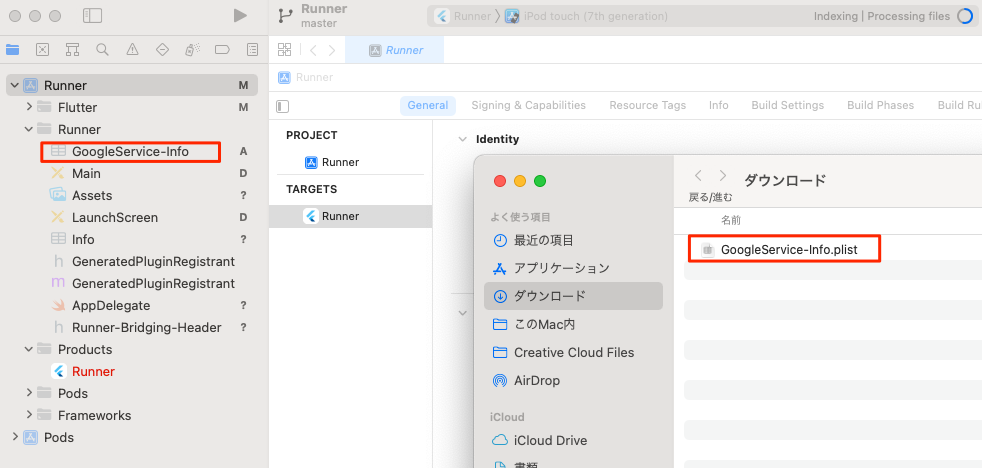

またXcodeに戻り、ダウンロードしたGoogleService-info.plistをios/Runnerに追加します。

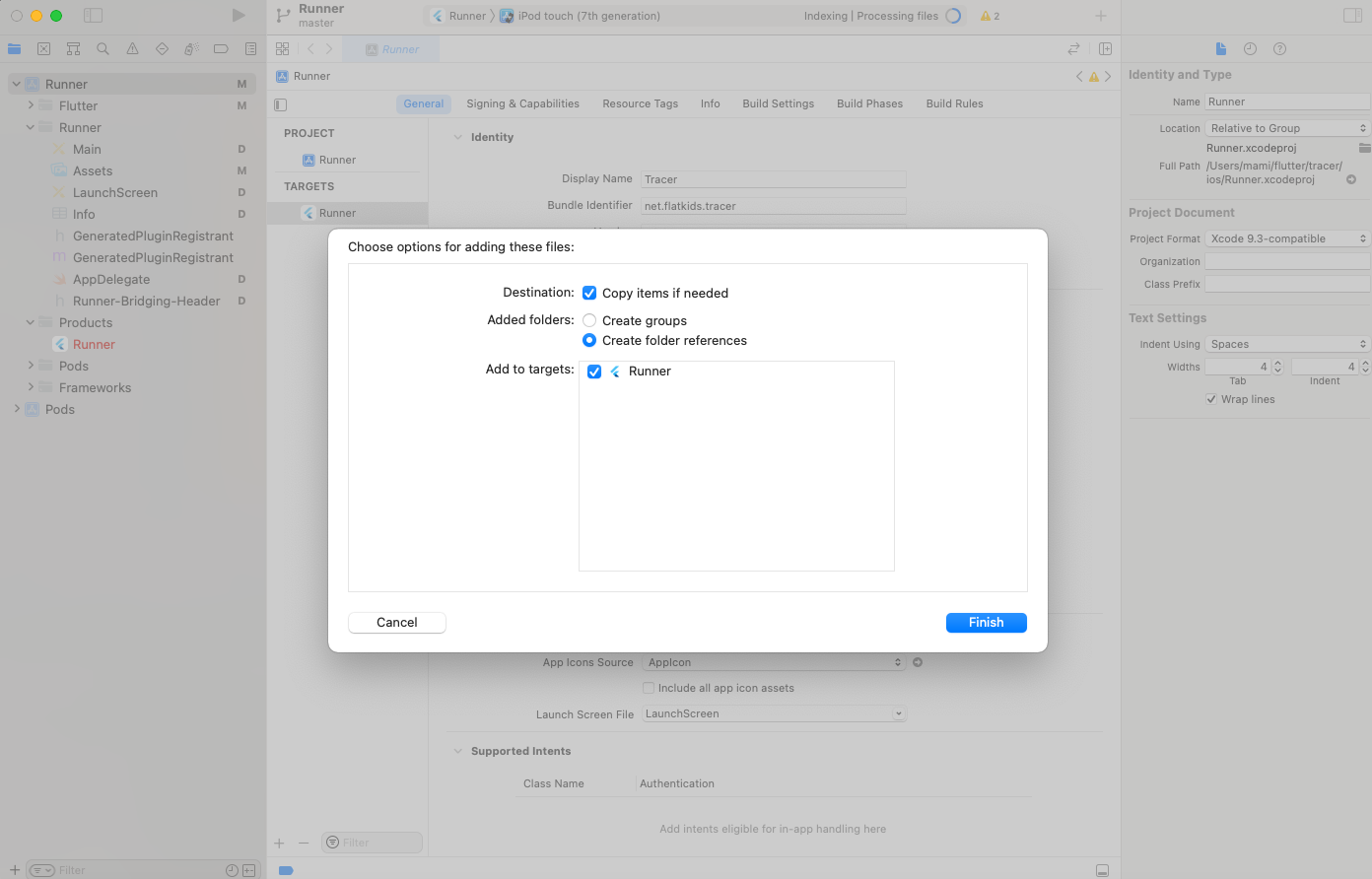

以下のような画面が表示されるのでFinishします。

ログイン用ソースコード

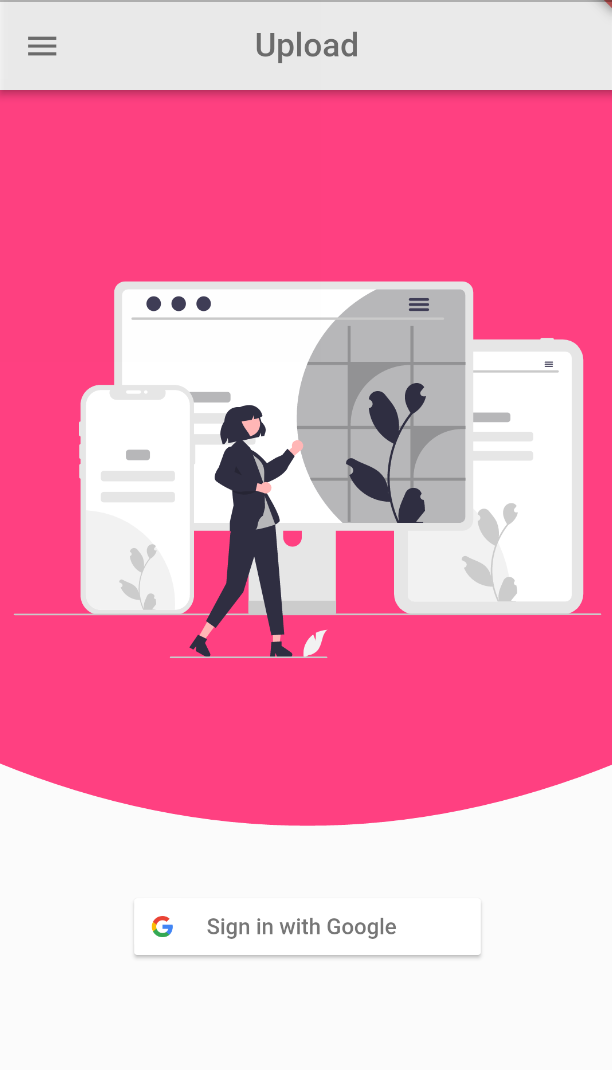

ログイン画面に何もないと少し寂しいので、少しオシャレな感じにします。(センスの無さ如何ともし難い…)ログインボタンさえあればOKです。

Signin画像はこちらからダウンロードした画像です。画像はassetsフォルダに配置しpubspec.yamlに以下を追加します。

1
2
3
flutter:
  assets:
    - assets/

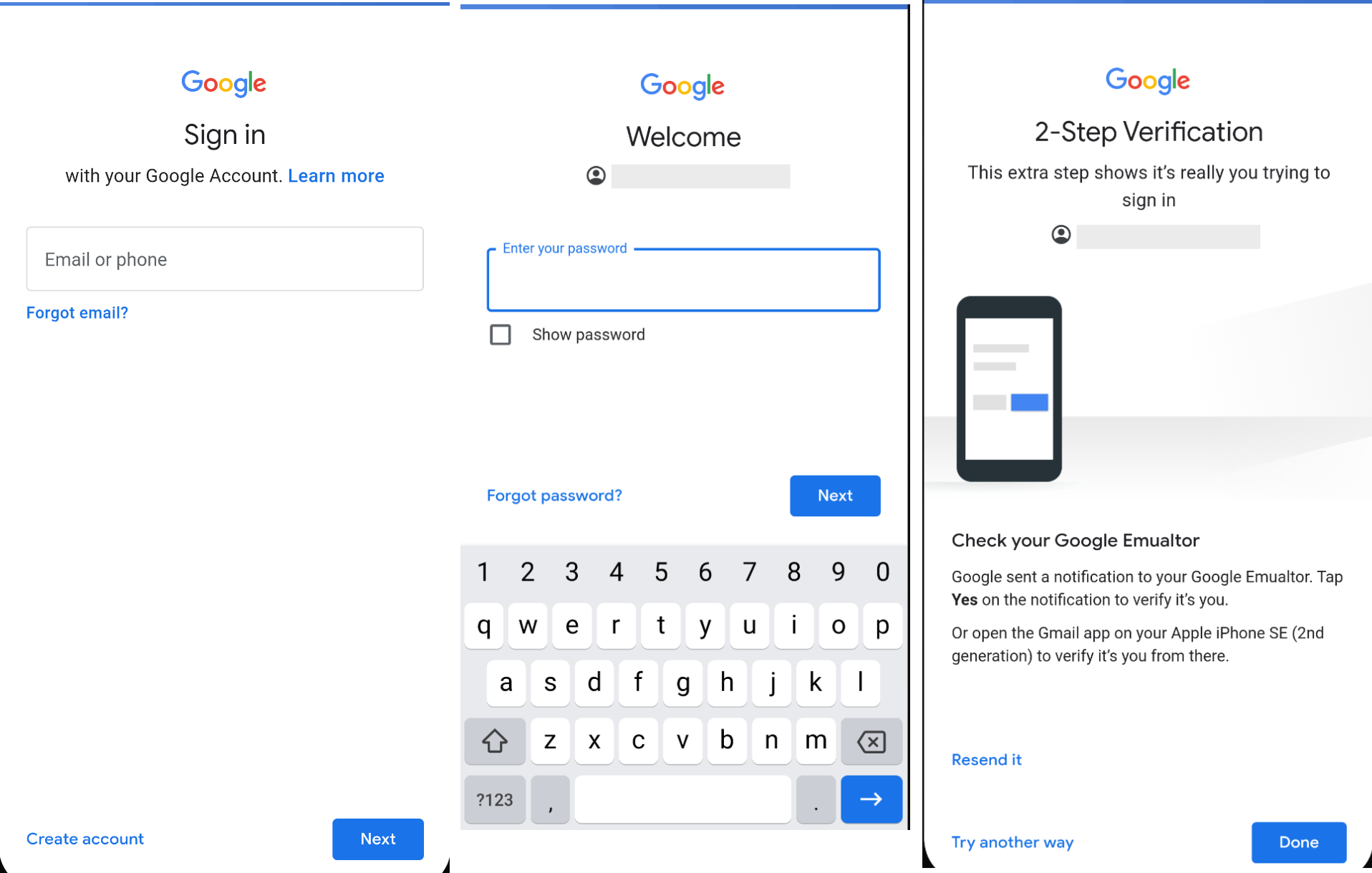

Signinボタンを押下すると、以下のようにFirebaseが勝手にしてくれます。ありがたや。

google_login.dartというファイルを作り、以下を書きます。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
import 'package:flutter/material.dart';
import 'package:flutter_svg/flutter_svg.dart';
import 'package:firebase_auth/firebase_auth.dart';
import 'package:firebase_core/firebase_core.dart';
import 'package:google_sign_in/google_sign_in.dart';

import 'package:flutter_signin_button/flutter_signin_button.dart';
import 'package:tracer/routes/google_login_info.dart';

import '../baseappbar.dart';

class GoogleLogin extends StatefulWidget {
  const GoogleLogin({Key? key}) : super(key: key);

  @override
  _GoogleLoginState createState() => _GoogleLoginState();
}

class _GoogleLoginState extends State<GoogleLogin> {
  bool _isSigningIn = false;

  @override
  Widget build(BuildContext context) {
    Size size = MediaQuery.of(context).size;
    return Scaffold(
      appBar: BaseAppBar(
        title: const Text('Upload',style: TextStyle(color: Colors.black54)),
        appBar: AppBar(),
      ),
      backgroundColor: Colors.white12,
      body:SafeArea(
        child: Column(
          mainAxisSize: MainAxisSize.max,
          children: <Widget>[
            ClipPath(
              clipper: MyClipper(),
              child: Container(
                margin: const EdgeInsets.only(bottom: 10.0 * 2.5),
                height: size.height * 0.6,
                width: double.infinity,
                decoration: const BoxDecoration(
                  color: Colors.pinkAccent,
                ),
                child: Column(
                  children: <Widget>[
                    Expanded(
                      child: Padding(
                        padding: const EdgeInsets.all(10.0),
                        child: SvgPicture.asset(
                          "assets/design_pc.svg",
                          fit: BoxFit.fitWidth,
                          // alignment: Alignment.bottomCenter,
                        ),
                      ),
                    ),
                  ],
                ),
              ),
            ),
            FutureBuilder(
              future: initFirebase(),
              builder: (context, snapshot) {
                if (snapshot.hasError) {
                  return const Text('Error initializing Firebase');
                } else if (snapshot.connectionState == ConnectionState.done) {
                  return Padding(
                    padding: const EdgeInsets.only(bottom: 16.0),
                    child: _isSigningIn
                        ? const CircularProgressIndicator()
                        : SignInButton(
                    Buttons.Google,
                    onPressed: () async {
                      setState(() {
                        _isSigningIn = true;
                      });
                      User? user = await signIn();
                      setState(() {
                        _isSigningIn = false;
                      });

                      if (user != null) {
                        Navigator.of(context).pushReplacement(
                          MaterialPageRoute(
                            builder: (context) => GoogleLoginInfo(
                              user: user,
                            ),
                          ),
                        );
                      } else {
                        AlertDialog(
                          title: const Text('Error'),
                          content: const Text('Google sign in failed.'),
                          actions: <Widget>[
                            TextButton(
                              child: const Text("OK"),
                              onPressed: () => Navigator.pop(context),
                            ),
                          ],
                        );
                      }
                    },
                    )
                  );
                }
                return const CircularProgressIndicator();
              },
            ),
          ],
        ),
      )
    );
  }

  Future<FirebaseApp> initFirebase() async {
    FirebaseApp firebaseApp = await Firebase.initializeApp();

    User? user = FirebaseAuth.instance.currentUser;

    if (user != null) {
        MaterialPageRoute(
          builder: (context) => GoogleLoginInfo(
            user: user,
          ),
        ),
      );
    }

    return firebaseApp;
  }

  Future<User?> signIn() async {
    FirebaseAuth auth = FirebaseAuth.instance;
    User? user;

    GoogleSignIn googleSignIn = GoogleSignIn();
    GoogleSignInAccount? googleSignInAccount = await googleSignIn.signIn();

    if (googleSignInAccount != null) {

      GoogleSignInAuthentication googleSignInAuthentication = await googleSignInAccount.authentication;
      Map<String, String> authHeaders = await googleSignInAccount.authHeaders;

      AuthCredential credential = GoogleAuthProvider.credential(
        accessToken: googleSignInAuthentication.accessToken,
        idToken: googleSignInAuthentication.idToken,
      );

      try {
        UserCredential userCredential = await auth.signInWithCredential(credential);
        user = userCredential.user;
      } on FirebaseAuthException catch (e) {
        user = null;
      }
    }
    return user;
  }
}

class MyClipper extends CustomClipper<Path> {
  @override
  Path getClip(Size size) {
    var path = Path();
    path.lineTo(0, size.height - 80);
    path.quadraticBezierTo(
        size.width / 2, size.height, size.width, size.height - 80);
    path.lineTo(size.width, 0);
    path.close();
    return path;
  }

  @override
  bool shouldReclip(covariant CustomClipper<Path> oldClipper) {
    return false;
  }
}

ログアウト用ソースコード

ログアウトはGoogleSpreadSheetsの処理を追加したいので、今はシンプルにします。

google_login_info.dartというファイルを作り、以下を書きます。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
import 'package:firebase_auth/firebase_auth.dart';
import 'package:flutter/material.dart';
import 'package:google_sign_in/google_sign_in.dart';

import 'package:tracer/routes/google_login.dart';

import '../baseappbar.dart';

class GoogleLoginInfo extends StatefulWidget {
  const GoogleLoginInfo({Key? key, required User user})
      : _user = user,
        super(key: key);

  final User _user;

  @override
  _GoogleLoginInfoState createState() => _GoogleLoginInfoState();
}

class _GoogleLoginInfoState extends State {
  late User _user;
  bool _isSigningOut = false;

  @override
  void initState() {
    _user = widget._user;

    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: TransAppBar(
        title: 'Google Sign In',
        appBar: AppBar(),
      ),
      body: SafeArea(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Row(),
              _user.photoURL != null
                  ? ClipOval(
                    child: Material(
                      color: Colors.white60,
                      child: Image.network(
                        _user.photoURL!,
                        fit: BoxFit.fitHeight,
                      ),
                    ),
                  )
                  : const ClipOval(
                      child: Material(
                        color: Colors.black12,
                        child: Padding(
                          padding: EdgeInsets.all(16.0),
                          child: Icon(
                            Icons.person,
                            size: 60,
                            color: Colors.deepOrange,
                          ),
                        ),
                      ),
                    ),
              const SizedBox(height: 16.0),
              Text(
                _user.displayName!,
                style: const TextStyle(
                  fontSize: 26,
                ),
              ),
              const SizedBox(height: 16.0),
              if (_isSigningOut) const CircularProgressIndicator(
                  valueColor: AlwaysStoppedAnimation(Colors.white),
                ) else OutlinedButton(
                  child: const Text('Sign Out'),
                  onPressed: () async {
                    setState(() {
                      _isSigningOut = true;
                    });
                    await signOut();
                    setState(() {
                      _isSigningOut = false;
                    });
                    Navigator.of(context).pushReplacement(
                      MaterialPageRoute(
                        builder: (context) => const GoogleLogin(),
                      ),
                    );
                  },
                )
            ],
          ),
        ),
    );
  }

  Future signOut() async {
    final GoogleSignIn googleSignIn = GoogleSignIn();
    await googleSignIn.signOut();
    await FirebaseAuth.instance.signOut();
  }
}

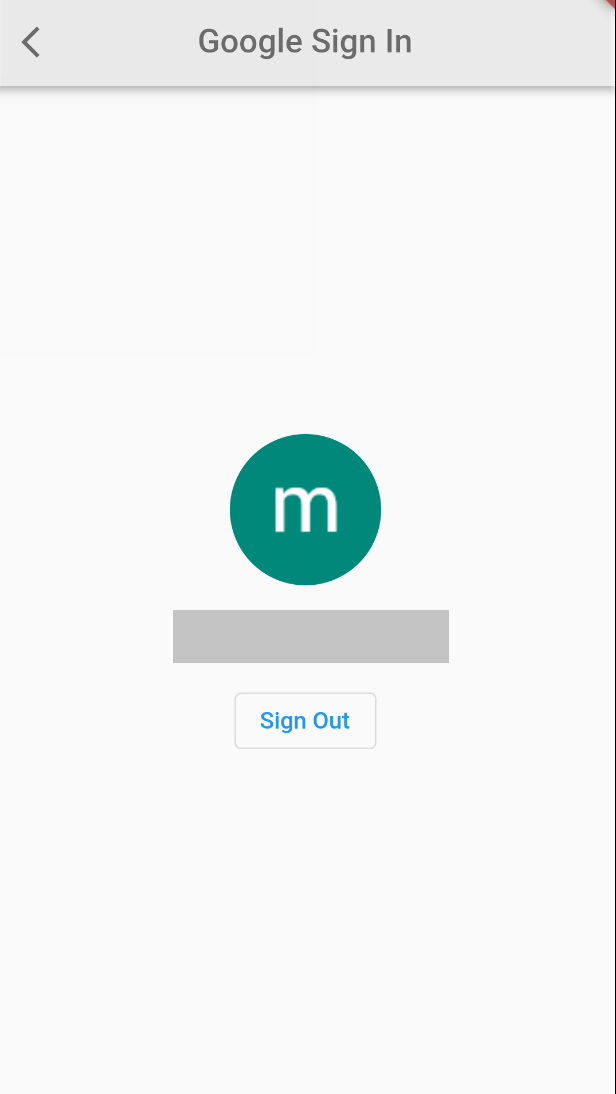

SignOutするとログイン用画面に戻るようにしてあります。

これで①Googleにログイン編は終わりです。
